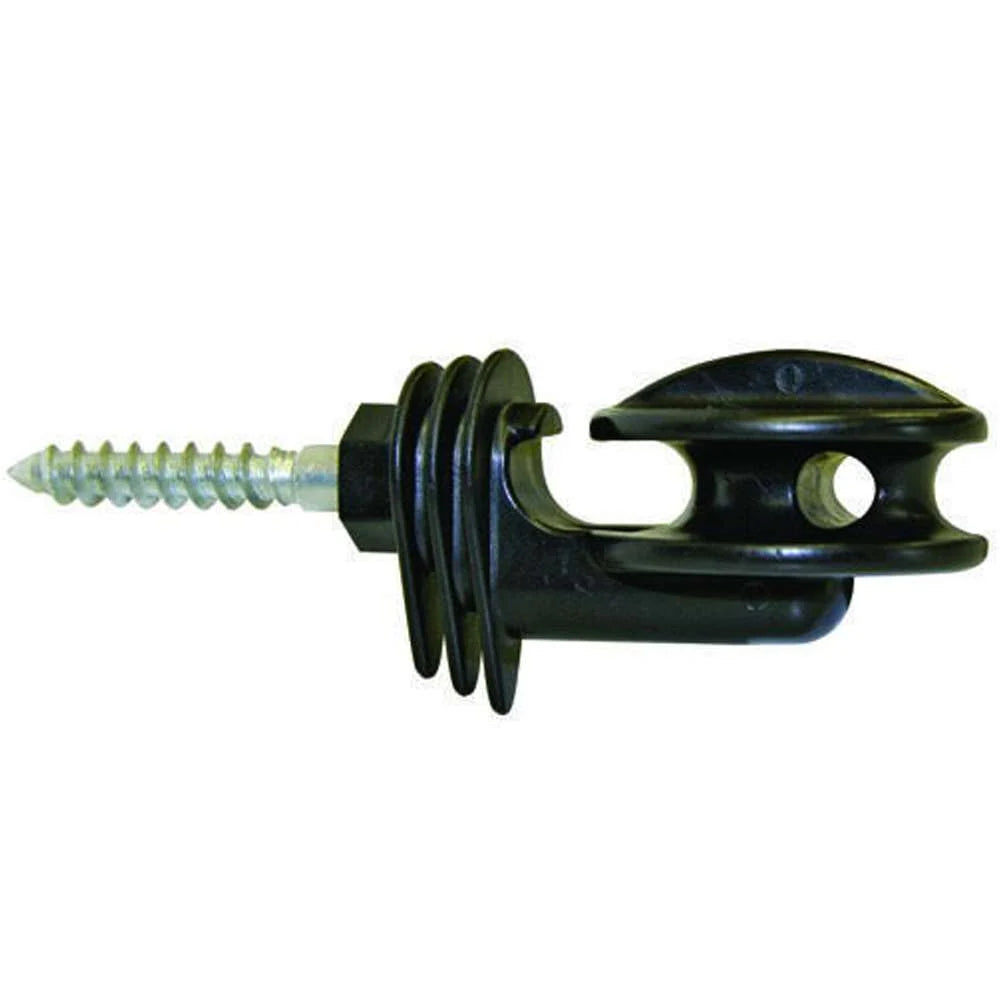

Agrifence Woodscrew Corner/End Insulator – Pack of 2

Agrifence Woodscrew Corner/End Insulator

A screw-in insulator for the corners and ends of a rope or wire fence, moulded in polyamide — the plastic Agrifence specify where high tensile forces are involved. It drives straight into a timber post and takes the strain of a line terminating or changing direction, which is several times what a straight-run insulator ever sees.

The body is smooth where the conductor passes over it, so rope and wire feed round without being cut into. It is an inexpensive fitting doing an important job: corners and ends are where fences let go, and a line insulator pressed into corner service is the usual reason why.

Performance & Benefits

• Screw-in corner and end insulator for timber posts.
• Very strong polyamide plastic, specified by Agrifence for high tensile forces.
• Smooth surface lets rope or wire feed round without chafing.
• Terminates a line or turns it through a corner without loss of insulation.
• Cheap enough to fit properly at every strain point rather than improvising.

Suitable For

• Electric fence rope and wire.
• Corners, ends and line starts on permanent fencing.
• Sound timber posts that will hold a screw fixing under tension.
• Replacing cracked line insulators that have been used at corners.
• Agrifence specify this insulator for rope and wire, not tape — 40mm tape corners need the Agrifence Tape Corner Screw Insulator, which spreads the load across the tape's width.

How to Use

• Switch the energiser off before working on the line.
• Screw the insulator into sound timber, square to the direction of pull.
• Pass the rope or wire through so it bears on the smooth channel, not on the post.
• Bring the line up to tension and check the conductor is running clear of the timber.
• Check corner and end insulators once a season — they wear before anything else.

Specification

• Agrifence product code H4626. Barcode 5052150001920.
• Polyamide plastic body, woodscrew fixing.
• For electric fence rope and wire.
• Agrifence publish no screw length, breaking load or maximum conductor diameter, so none is stated here.
• Agrifence list H4626 as a single insulator and publish no multipack, so the pack quantity in the title above is the store's own.
