Agrifence 40mm Tape Clamps – Premium Electric Fence Tape Joiners

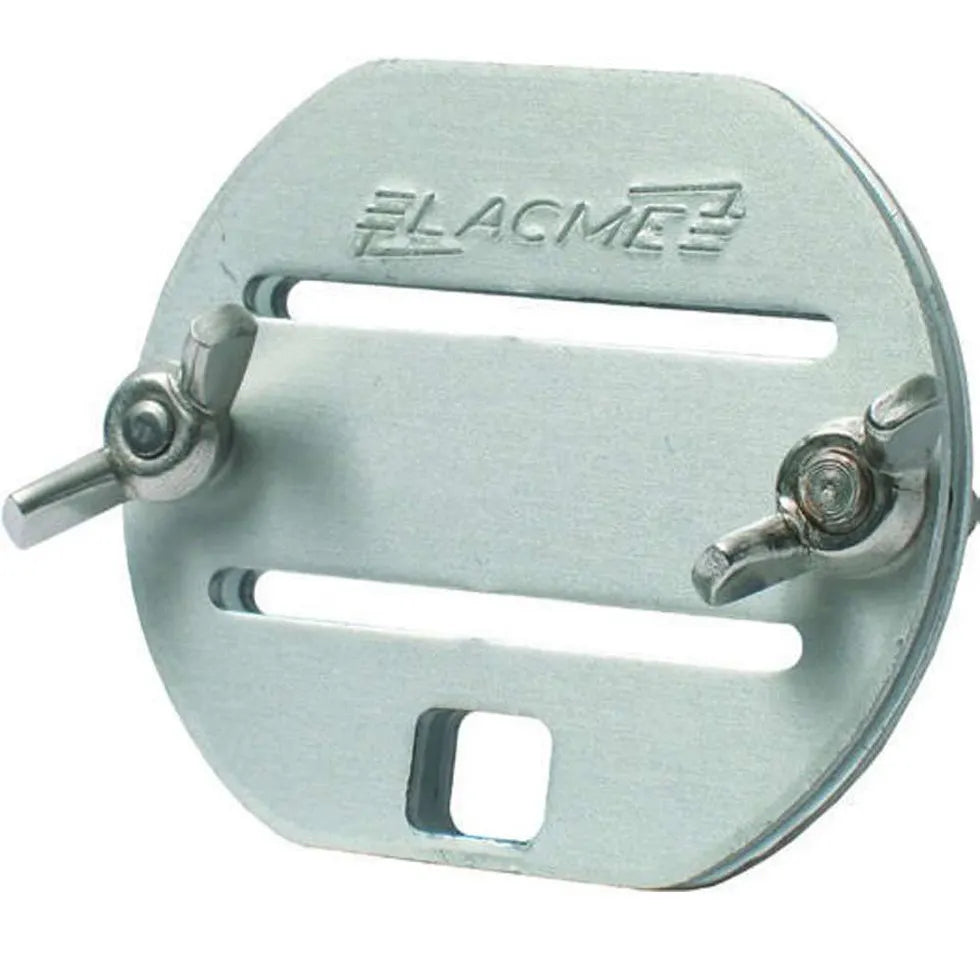

Agrifence Tape Clamp – 40mm

A clamp is how you join fence tape properly. Tying a knot in tape pinches the conductive wires together and away from each other at the same time, and the join goes high-resistance within a season; a clamp holds the two tape faces flat against each other across the full width, so every wire in one length meets its opposite number in the next.

Agrifence describe this one as their premium 40mm connector, made for perfect electrical contact and ultimate conductivity, and back it with a five-year guarantee. It is the fitting to reach for when a roll runs out mid-line, when a horse has walked through the tape, or when a repair has to conduct as well as the original run did.

Performance & Benefits

• Joins 40mm polytape with the two faces held flat against each other.
• Agrifence specify it for perfect electrical contact and ultimate conductivity.
• Five-year guarantee.
• Keeps a repaired join conducting as well as the rest of the line.
• Works with Agrifence's 40mm Easytape, Megatape and Maxitape alike.
• Also made in a 20mm size for narrower tape.

Suitable For

• Joining one 40mm tape roll to the next.
• Repairing a broken or damaged run of tape.
• Extending an existing 40mm fence line.
• Reconnecting a line after a corner or gateway rebuild.
• Not the fitting for connecting tape to a gate handle — Agrifence's Tape End Clip is made for that.

How to Use

• Switch the energiser off and confirm the line is dead before you start.
• Overlap the two tape ends squarely so the wires line up across the width.
• Close the clamp over the overlap and tighten until the tape is held flat.
• Trim the loose tails back once the join is made.
• Check the join after the first fortnight and re-tighten if the tape has crept.

Specification

• For 40mm polytape.
• Agrifence product code H6002. Barcode 5052150000862.
• Five-year guarantee.
• Also supplied in a 20mm version.
• Agrifence publish no pack quantity, material, fastener type or weight for this clamp. Descriptions of aluminium plates, a stainless steel bolt and wingnut and an 80g weight appear on some retail listings but are not theirs, so they are not repeated here.
• Agrifence make no claim that the clamp acts as a mechanical fuse or breakaway for horse safety; that claim on the previous listing is not supported by their copy.
