Agrifence Gate Anchor Insulator 10 Pack – Electric Fence Insulator

Agrifence Gate Anchor Insulator – Pack of 10

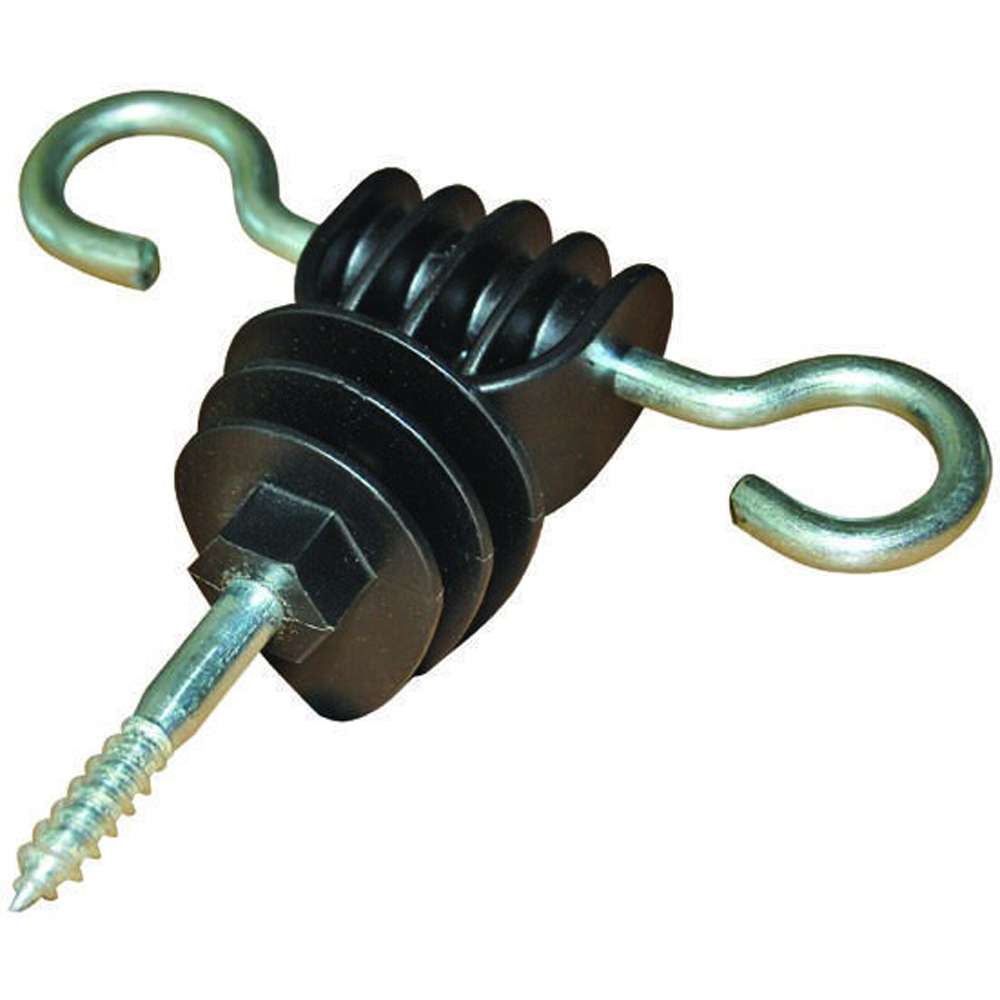

A gate anchor is the fixed half of an electric fence gateway: the insulated loop screwed into the post that the gate handle hooks onto and pulls against. This is Agrifence's woodscrew double-loop pattern, code H6012, supplied ten to a pack — enough for five gateways run from both sides, or ten single openings.

The double loop is the point of it. One loop carries the live line coming in along the fence, the other takes the gate handle, so the handle can be unhooked and the gateway left open without the loose end swinging back onto an earthed post. Agrifence recommend it for short-term and seasonal work rather than a permanent stock gate.

Performance & Benefits

• Double loop takes the incoming fence line and the gate handle on separate eyes.
• Woodscrew shank drives straight into a sound timber post — no bolts, no drilling.
• Insulated body keeps the live line clear of the post when the gate is closed.
• Ten per pack, so a paddock division and its return gateway come out of one box.
• Agrifence rate it for short-term installations and for dual gateways when splitting paddocks.

Suitable For

• Wooden gate posts and strainers in tape, rope or polywire systems.
• Temporary and seasonal paddock divisions.
• Dual gateways where two lines converge on one opening.
• Strip grazing set-ups moved every few days.
• Not the fitting for a permanent, high-tension gateway or for three or more lines meeting at one post — the Agrifence Multiway Gate Anchor, with its three anchor points, is the one for that.

How to Use

• Choose a sound, dry timber post at the height your live line already runs.
• Drive the woodscrew shank in square until the body sits flush against the timber.
• Take the incoming fence line through one loop and leave the second loop free for the gate handle.
• Repeat on the far post so the handle has a fixed anchor at each end of the opening.
• Unhook the handle from the anchor to open; hang it clear of the ground so the loose line cannot short out.

Specification

• Agrifence product code H6012. Barcode 5052150000138.
• Pack of 10 insulators.
• Fixing: woodscrew shank, for timber posts.
• Design: double loop gateway insulator.
• Agrifence publish no material breakdown, load rating or dimensions for this anchor, so none is stated here.
